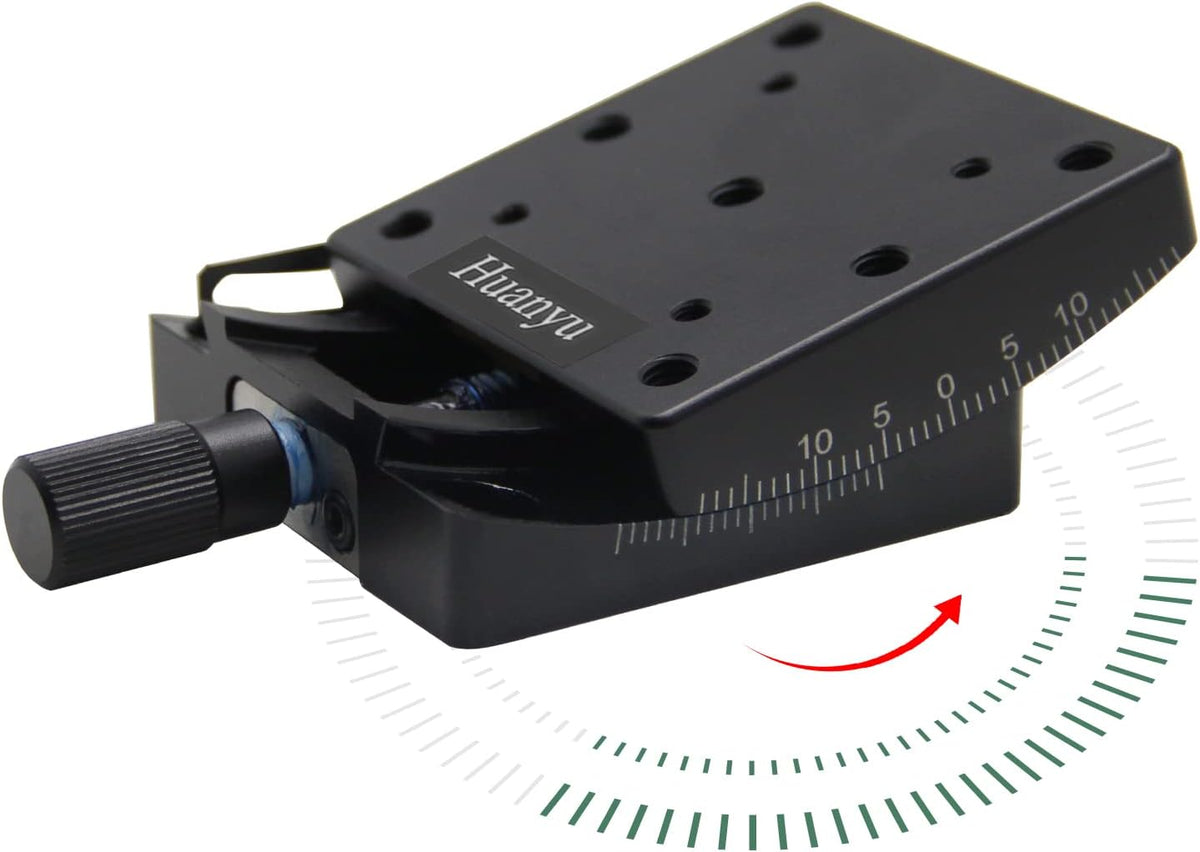

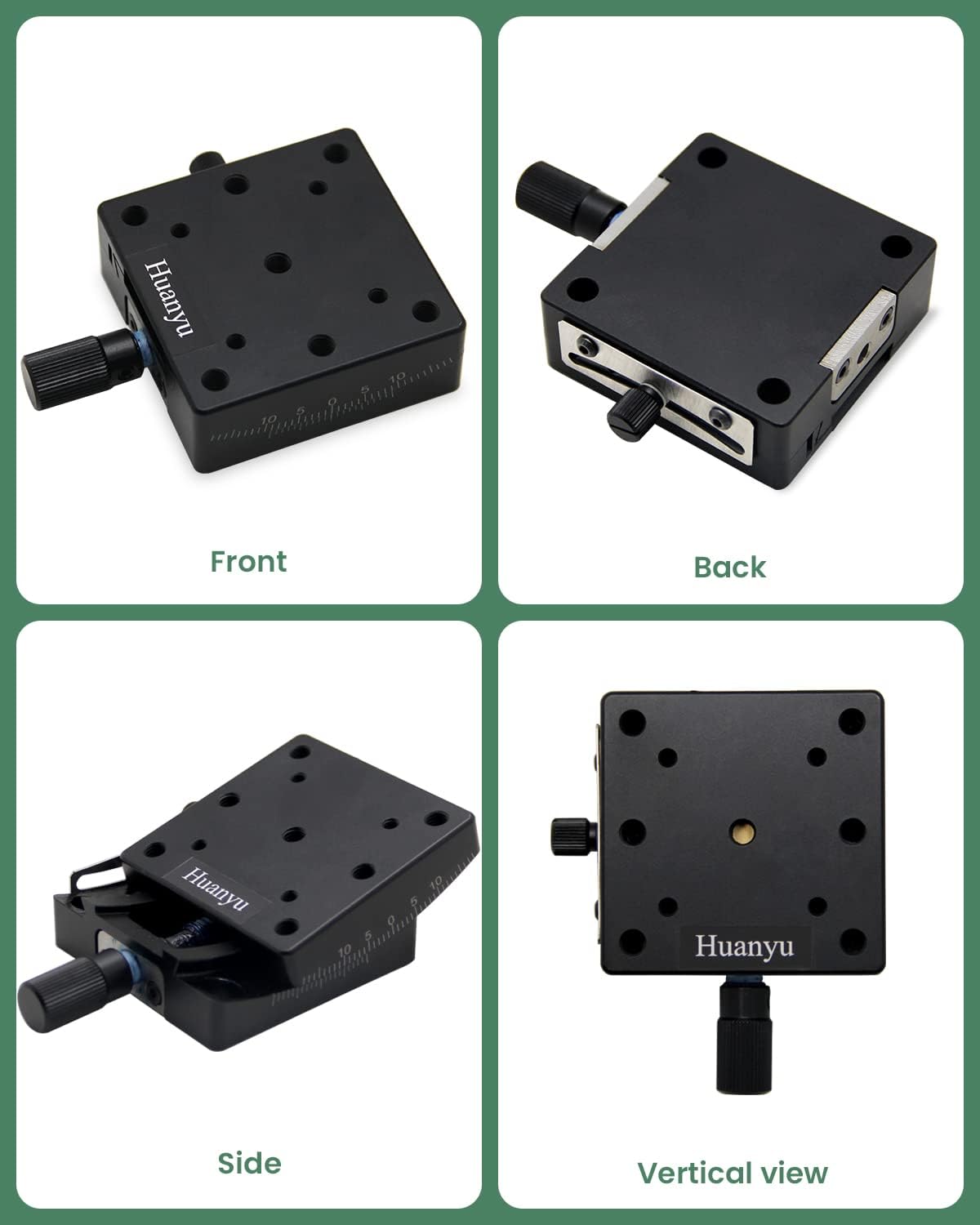

Manual Goniometer Stage 65x65mm Tilt Platform G287
Sale price
$22.50
Regular price $89.69
Skip to product information

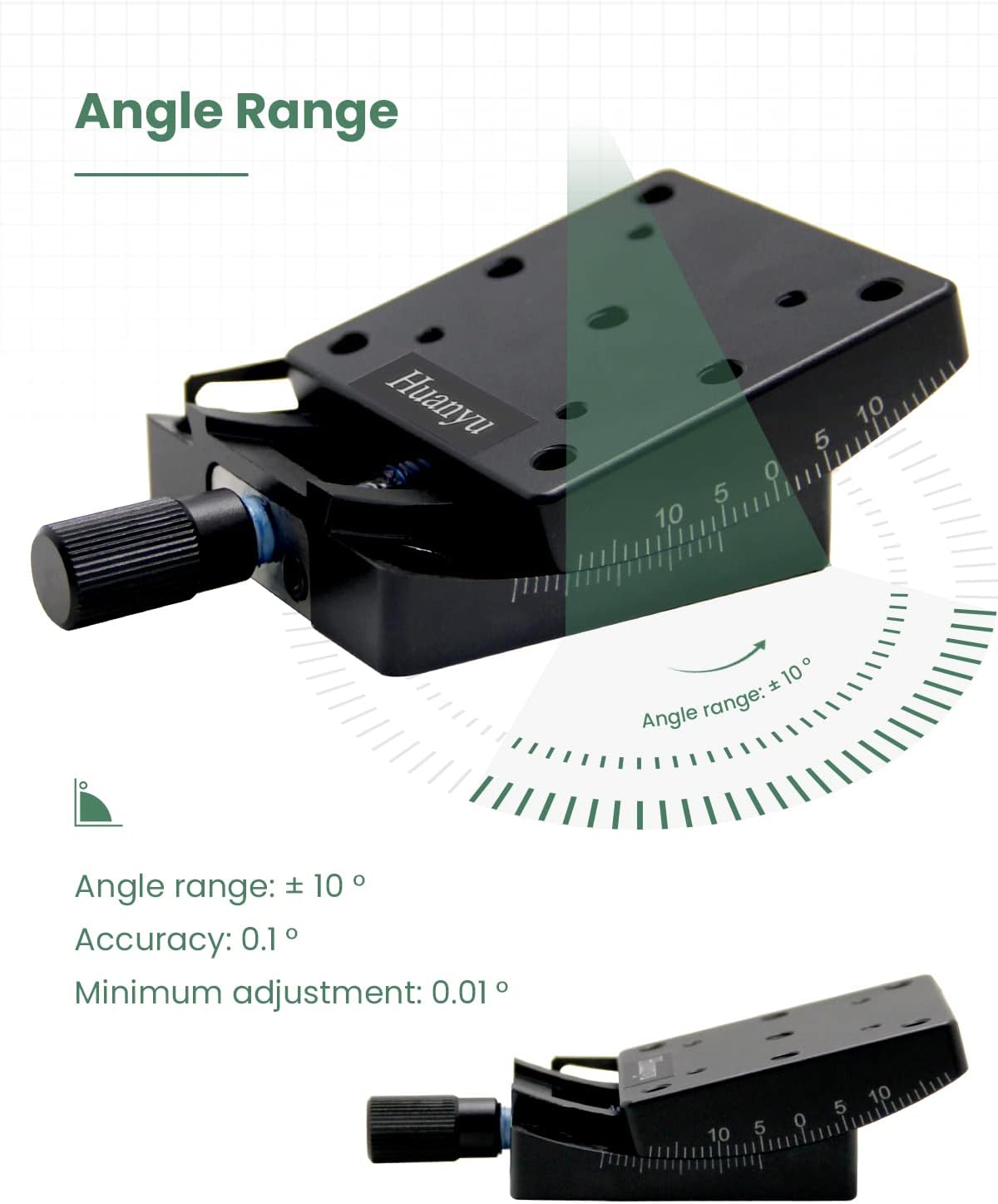

【Angle range:】 ± 10 °, minimum reading scale 1 °, minimum reading 5 ′，table size 65x65mm.

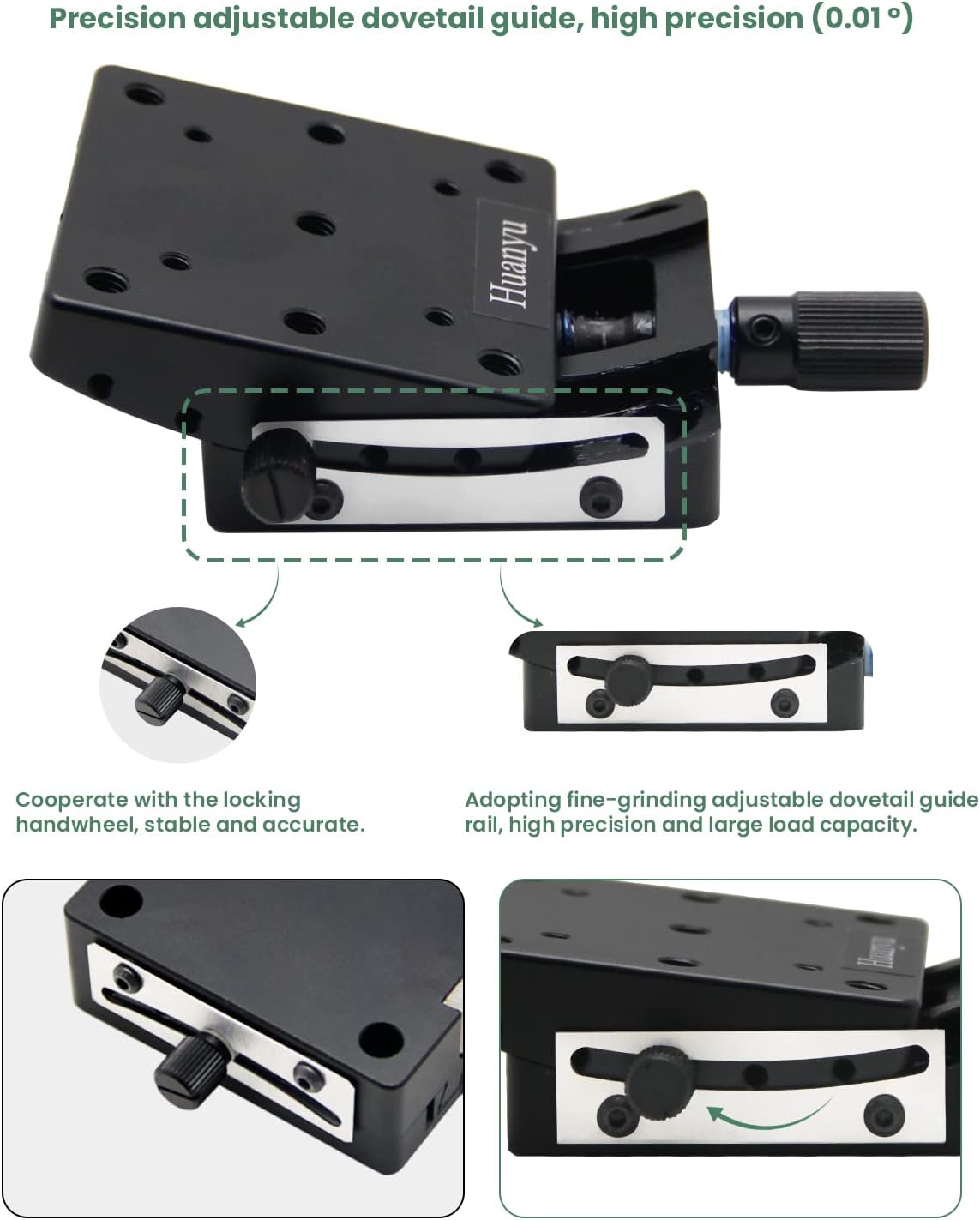

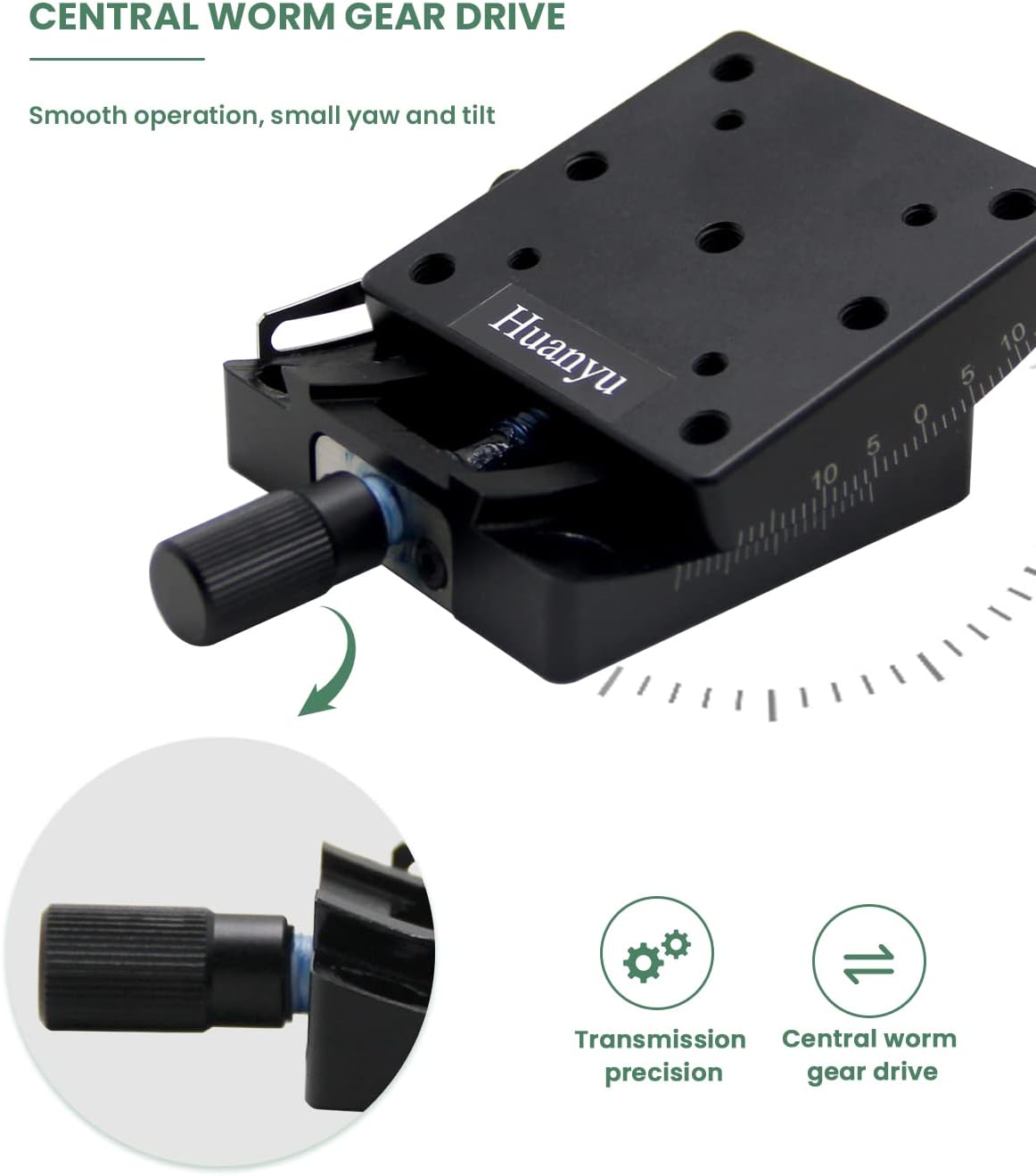

【Drive & Guide:】 Central worm gear and worm drive, precision adjustable dovetail guide, high precision (0.01 °), comfortable movement and stable operation, small yaw and tilt, only 200 ″
【Material:】 Aluminum, anodized surface, corrosion and rust, the maximum load reached 8kg.
【Paired design:】 the center of rotation is the same point after superposition, and the orthogonal two-axis concentric rotation can be adjusted

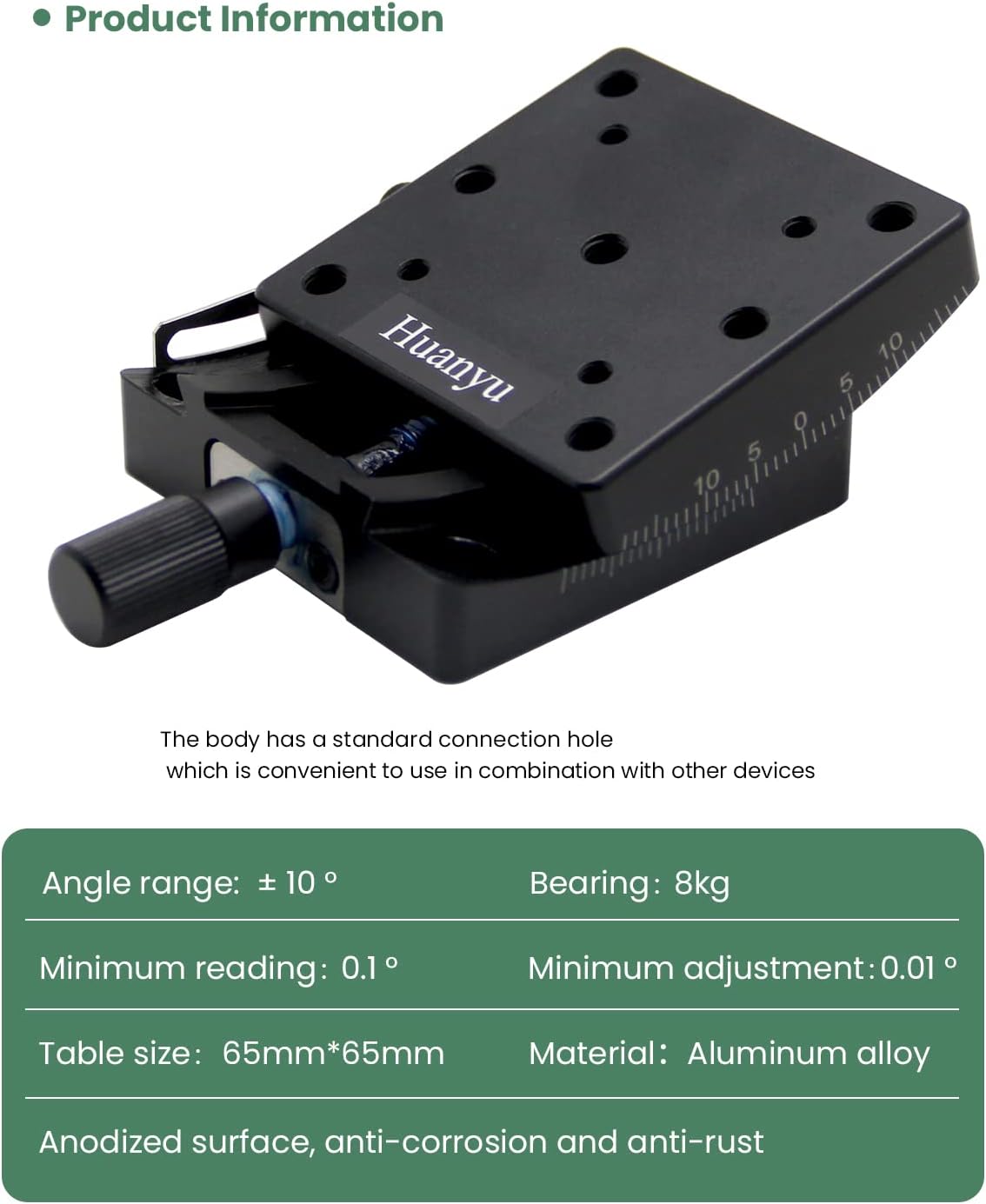

【Standard: 】Standard: With standard connection holes, it can be combined with other series products to form a multi-dimensional adjustment frame, which has unlimited application possibilities.
Manual Goniometer Stage 65x65mm Tilt Platform G287
Sale price
$22.50
Regular price $89.69
Shipping calculated at checkout.
【Angle range:】 ± 10 °, minimum reading scale 1 °, minimum reading 5 ′，table size 65x65mm.
【Drive & Guide:】 Central worm gear and worm drive, precision adjustable dovetail guide, high precision (0.01 °), comfortable movement and stable operation, small yaw and tilt, only 200 ″
【Material:】 Aluminum, anodized surface, corrosion and rust, the maximum load reached 8kg.
【Paired design:】 the center of rotation is the same point after superposition, and the orthogonal two-axis concentric rotation can be adjusted
【Standard: 】Standard: With standard connection holes, it can be combined with other series products to form a multi-dimensional adjustment frame, which has unlimited application possibilities.
| Optical Tilt and Rotation Stage | X Axis Micrometer Translation Stage | Z-Axis Manual Lift Platform | Electric Precise Lifting Platform Z-axis | Optical Rotating Platform φ60mm | |
|---|---|---|---|---|---|
| Model | Manual | Manual | Manual | Electric | Electric |
| Function | Two-dimensional 3°Tilt Table | x-axis translation | z axis lift | z axis lift | Plane rotation |
| Table size | 65mm×65mm | 34mm×34mm | 120 mm×80mm | 120 mm×80mm | φ60mm |
| Journey | ±3° tilt | 13mm | 60 mm | 60 mm | 360° |
| Load-bearing | 2kg | 2kg | 20kg | 15kg | 30kg |
